- 產品型號：90782073
- 頻率：122.88 MHz
- 尺寸：5.0x3.2mm
- 產品介紹：思佳訊LVDS輸出貼片晶振,540BAA122M880BBGR,Si540導航儀晶振，進口晶振，Skyworks思佳訊晶振，型號：Si540，編碼為：540BAA122M880BBGR，頻率為：122.88MHz，小體...
-

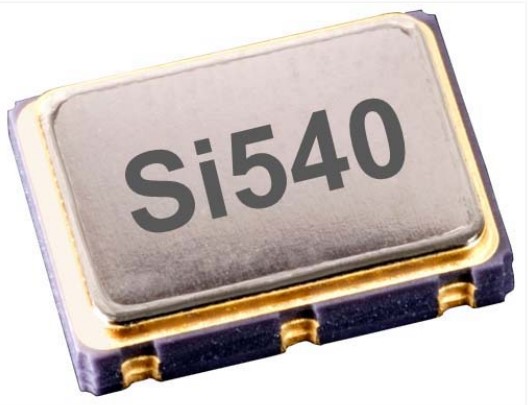

思佳訊LVDS輸出貼片晶振,540BAA122M880BBGR,Si540導航儀晶振
航欄(16).jpg)
.jpg)

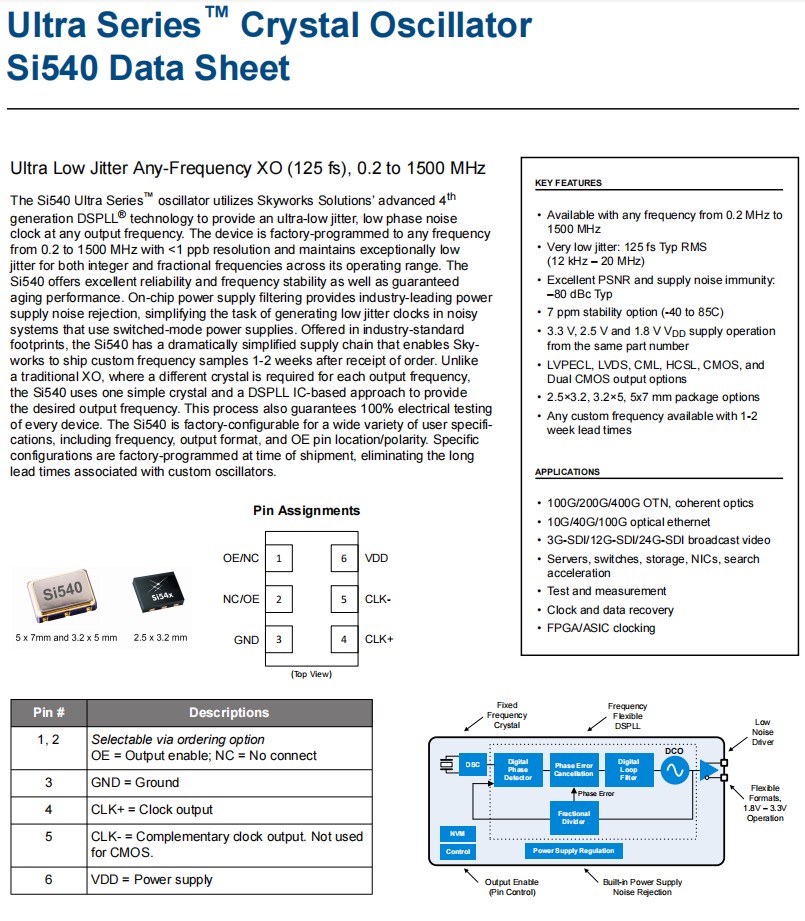

思佳訊LVDS輸出貼片晶振,540BAA122M880BBGR,Si540導航儀晶振，進口晶振，Skyworks思佳訊晶振，型號：Si540，編碼為：540BAA122M880BBGR，頻率為：122.88 MHz，小體積晶振尺寸：5.0x3.2mm封裝，六腳貼片晶振，LVDS輸出差分晶體振蕩器，石英晶振，有源晶振，差分晶振，石英晶體振蕩器。具有超小型，輕薄型，低抖動，低功耗，低相位噪聲，低電源電壓，高精度，高性能等特點。應用于：100G/200G/400G OTN，10G/40G/100G光學以太網，3G-SDI/12G-SDI/24G-SDI廣播視頻，服務器、交換機、存儲、NIC、搜索加速，測試和測量，時鐘和數據恢復，F(xiàn)PGA/ASIC時鐘等應用。
Si540超系列™振蕩器利用天空解決方案先進的第四代DSPLL®技術，在任何輸出頻率提供超低抖動、低相位噪聲時鐘。該設備被工廠編程到從0.2到1500 MHz的任何頻率，分辨率為<1 ppb，并在其工作范圍內對整數和分?jǐn)?shù)頻率保持異常低的抖動。Si540石英晶體振蕩器提供了卓越的可靠性和頻率穩定性，以及保證老化性能。片上電源濾波提供了行業領先的電源噪聲抑制，簡化了在使用切換模式電源的有噪聲系統中產生低抖動時鐘的任務。Si540具有行業標準的足跡，有一個大大簡化的供應鏈，使Skyworks能夠在收到訂單1-2周后運送定制頻率樣品。與傳統的XO不同，每個輸出頻率都需要不同的晶體，Si540使用一個簡單的晶體和一種基于DSPLL ic的方法來提供所需的輸出頻率。這個過程也保證了每個設備的100%的電氣測試。Si540可在工廠上配置各種用戶規格，包括頻率、輸出格式和OE引腳位置/極性。特定的配置是在裝運時由工廠編程的，消除了與自定義振蕩器相關的長交貨時間。
.jpg)
思佳訊LVDS輸出貼片晶振,540BAA122M880BBGR,Si540導航儀晶振,參數表
| Parameter | Symbol | Test Condition/Comment | Min | Typ | Max | Unit | |||||||||||||||||||||||||||||||||||||
| Temperature Range | TA | –40 | 85 | ºC | |||||||||||||||||||||||||||||||||||||||
| Frequency Range | FCLK | LVPECL, LVDS, CML | 122.88 | MHz | |||||||||||||||||||||||||||||||||||||||
| HCSL | 0.2 | — | 400 | MHz | |||||||||||||||||||||||||||||||||||||||
| CMOS, Dual CMOS | 0.2 | 250 | MHz | ||||||||||||||||||||||||||||||||||||||||
| Supply Voltage | V DD | 3.3 V | 3.135 | 3.3 | 3.465 | V | |||||||||||||||||||||||||||||||||||||
| 2.5 V | 2.375 | 2.5 | 2.625 | V | |||||||||||||||||||||||||||||||||||||||
| 1.8 V | 1.71 | 1.8 | 1.89 | V | |||||||||||||||||||||||||||||||||||||||
| Supply Current | IDD | LVPECL (output enabled) | 100 | 145 | mA | ||||||||||||||||||||||||||||||||||||||
| LVDS/CML (output enabled) | — | 75 | 111 | mA | |||||||||||||||||||||||||||||||||||||||
| HCSL (output enabled) | 80 | 125 | mA | ||||||||||||||||||||||||||||||||||||||||
| HCSL-Fast (output enabled) | — | 88 | 137 | mA | |||||||||||||||||||||||||||||||||||||||
| CMOS (output enabled) | 74 | 108 | mA | ||||||||||||||||||||||||||||||||||||||||
| Dual CMOS (output enabled) | — | 80 | 125 | mA | |||||||||||||||||||||||||||||||||||||||
| Tristate Hi-Z (output disabled) | 64 | 100 | mA | ||||||||||||||||||||||||||||||||||||||||
| Temperature Stability | Frequency stability Grade A | –20 | — | 20 | ppm | ||||||||||||||||||||||||||||||||||||||
| Frequency stability Grade B | –10 | 10 | ppm | ||||||||||||||||||||||||||||||||||||||||
| Frequency stability Grade C | –7 | — | 7 | ppm | |||||||||||||||||||||||||||||||||||||||
| Total Stability1 | F STAB | Frequency stability Grade A | –50 | 50 | ppm | ||||||||||||||||||||||||||||||||||||||
| Frequency stability Grade B | –25 | — | 25 | ppm | |||||||||||||||||||||||||||||||||||||||
| Frequency stability Grade C | –20 | 20 | ppm | ||||||||||||||||||||||||||||||||||||||||
|
Rise/Fall Time (20% to 80% VPP) |
TR/T F | LVPECL/LVDS/CML | — | — | 350 | ps | |||||||||||||||||||||||||||||||||||||
|
CMOS / Dual CMOS (CL = 5 pF) |
— | 0.5 | 1.5 | ns | |||||||||||||||||||||||||||||||||||||||
| HCSL, FCLK>50 MHz | — | — | 550 | ps | |||||||||||||||||||||||||||||||||||||||
| HCSL-Fast, FCLK>50 MHz | — | — | 275 | ps | |||||||||||||||||||||||||||||||||||||||
| Duty Cycle | DC | All formats | 45 | — | 55 | % | |||||||||||||||||||||||||||||||||||||
| Output Enable (OE)2 | VIH | 0.7 × V DD | V | ||||||||||||||||||||||||||||||||||||||||
| VIL | — | — | 0.3 × V DD | V | |||||||||||||||||||||||||||||||||||||||
| TD |
Output Disable Time, FCLK>10 MHz |
— | — | 3 | µs | ||||||||||||||||||||||||||||||||||||||
| TE |
Output Enable Time, FCLK>10 MHz |
20 | µs | ||||||||||||||||||||||||||||||||||||||||
| Powerup Time | tOSC |
Time from 0.9 × V DD until output fre- quency (FCLK) within spec |
— | — | 10 | ms | |||||||||||||||||||||||||||||||||||||
.jpg)

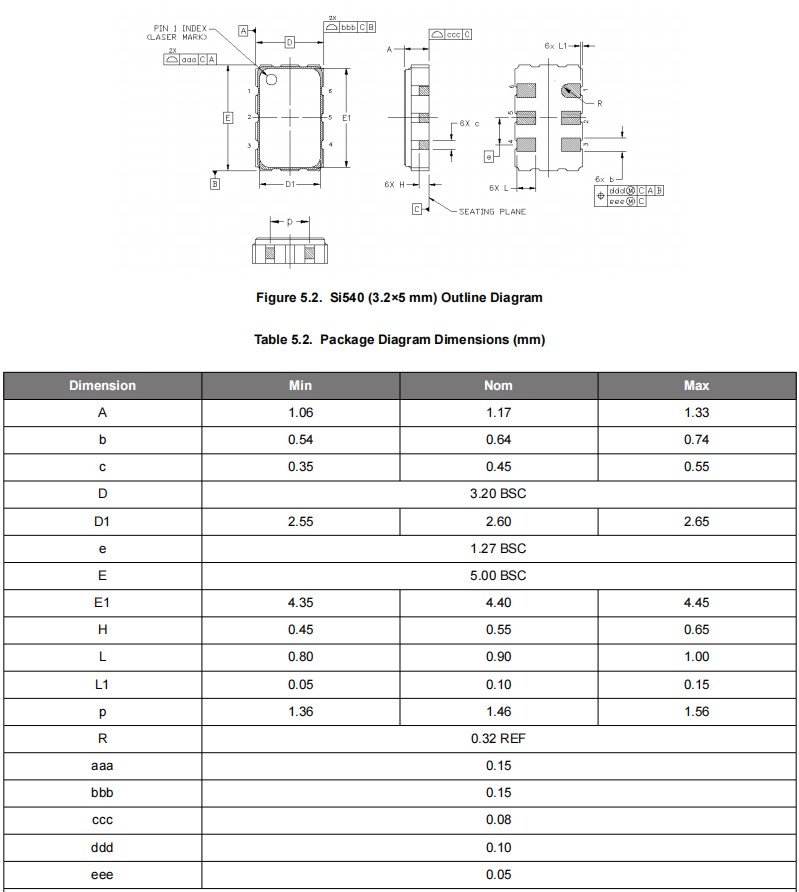

思佳訊LVDS輸出貼片晶振,540BAA122M880BBGR,Si540導航儀晶振,尺寸圖
思佳訊LVDS輸出貼片晶振,540BAA122M880BBGR,Si540導航儀晶振
產品特點：
可用于0.2MHz至1500MHz的任何頻率
極低抖動：125 fs典型RMS（12kHz–20MHz）
出色的PSNR和電源抗擾度：–80 dBc Typ
7ppm穩定性選項（-40至85攝氏度）
3.3V、2.5V和1.8V VDD電源操作來自相同的零件號
LVPECL、LVDS、CML、HCSL、CMOS和雙CMOS輸出選項
2.5×3.2、3.2×5、5x7 mm封裝選項貼片晶振
任何自定義頻率，交付周期為1-2周
Si540 XO支持多種選項，包括頻率、輸出格式和OE引腳位置/極性，如下圖所示。特定的設備配置在裝運時被編程到部件中，樣品可以在1-2周內提供。Skyworks解決方案提供了一個在線零件號配置實用程序來簡化這個過程。
| 編碼 | 晶振廠家 | 系列 | 頻率 | 輸出 | 電壓 |
| 540BAA000274BBG | Skyworks晶振 | Si540 | 322.265625 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA125M000BBG | Skyworks晶振 | Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA100M000BBG | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA122M880BBG | Skyworks晶振 | Si540 | 122.88 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA000244BBG | Skyworks晶振 | Si540 | 148.351648 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BCA000127BBG | Skyworks晶振 | Si540 | 644.53125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA100M000BBGR | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA106M250BAGR | Skyworks晶振 | Si540 | 106.25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA10M0000BAGR | Skyworks晶振 | Si540 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA125M000BBGR | Skyworks晶振 | Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA125M000BAGR | Skyworks晶振 | Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA38M400BBGR | Skyworks晶振 | Si540 | 38.4 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA70M0000BAGR | Skyworks晶振 | Si540 | 70 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA70M6560BAGR | Skyworks晶振 | Si540 | 70 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA80M0000BAGR | Skyworks晶振 | Si540 | 80 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA96M0000BAGR | Skyworks晶振 | Si540 | 96 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAC116M000BAGR | Skyworks晶振 | Si540 | 116 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAC70M6560BBGR | Skyworks晶振 | Si540 | 70.656 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA122M880BBGR | Skyworks晶振 | Si540 | 122.88 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA106M250BBGR | Skyworks晶振 | Si540 | 106.25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA80M0000BBGR | Skyworks晶振 | Si540 | 80 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BBA125M000BCGR | Skyworks晶振 | Si540 | 125 MHz | LVDS | 1.8V ~ 3.3V |
| 540BBA100M000BCGR | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V ~ 3.3V |
| 540BBA100M000CCGR | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BBA125M000CCGR | Skyworks晶振 | Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BBA33M3330BCGR | Skyworks晶振 | Si540 | 33.333 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BBA100M000ABG | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BBA100M000BBG | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BBA125M000BBG | Skyworks晶振 | Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BBA100M000ABGR | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BBA100M000BBGR | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BBA125M000BBGR | Skyworks晶振 | Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA100M000CCG | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA70M6560BCG | Skyworks晶振 | Si540 | 70.656 MHz | LVDS | 1.8V ~ 3.3V |
| 540BAA125M000BCG | Skyworks晶振 | Si540 | 125 MHz | LVDS | 1.8V ~ 3.3V |
| 540BAA106M250BCG | Skyworks晶振 | Si540 | 106.25 MHz | LVDS | 1.8V ~ 3.3V |
| 540BAA100M000BCG | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V ~ 3.3V |
| 540BAB20M0000CCG | Skyworks晶振 | Si540 | 20 MHz | LVDS | 1.8V ~ 3.3V |
| 540BCA25M0000CCG | Skyworks晶振 | Si540 | 25 MHz | LVDS | 1.8V ~ 3.3V |
| 540BAA106M250BBG | Skyworks晶振 | Si540 | 106.25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA80M0000BBG | Skyworks晶振 | Si540 | 80 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA70M6560BCGR | Skyworks晶振 | Si540 | 70.656 MHz | LVDS | 1.8V ~ 3.3V |
| 540BAA125M000BCGR | Skyworks晶振 | Si540 | 125 MHz | LVDS | 1.8V ~ 3.3V |
| 540BAA100M000BCGR | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V ~ 3.3V |
| 540BAA106M250BCGR | Skyworks晶振 | Si540 | 106.25 MHz | LVDS | 1.8V ~ 3.3V |
| 540BCA25M0000CCGR | Skyworks晶振 | Si540 | 25 MHz | LVDS | 1.8V ~ 3.3V |
| 540BAB20M0000CCGR | Skyworks晶振 | Si540 | 20 MHz | LVDS | 1.8V ~ 3.3V |
| 540BAA100M000CCGR | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA106M250BAG | Skyworks晶振 | Si540 | 106.25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA10M0000BAG | Skyworks晶振 | Si540 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA38M400BBG | Skyworks晶振 | Si540 | 38.4 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA70M0000BAG | Skyworks晶振 | Si540 | 70 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA70M6560BAG | Skyworks晶振 | Si540 | 70 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA96M0000BAG | Skyworks晶振 | Si540 | 96 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAC116M000BAG | Skyworks晶振 | Si540 | 116 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAC70M6560BBG | Skyworks晶振 | Si540 | 70.656 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BCA74M2500CCGR | Skyworks晶振 | Si540 | 74.25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BCA70M6560BCGR | Skyworks晶振 | Si540 | 70.656 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BCA100M000CCGR | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BCA122M880ABG | Skyworks晶振 | Si540 | 122.88 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BCA52M0000ABG | Skyworks晶振 | Si540 | 52 MHz | LVDS | 2.5V |
| 540BBA100M000BCG | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V ~ 3.3V |
| 540BBA125M000BCG | Skyworks晶振 | Si540 | 125 MHz | LVDS | 1.8V ~ 3.3V |
| 540BBA125M000CCG | Skyworks晶振 | Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BBA100M000CCG | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BBA33M3330BCG | Skyworks晶振 | Si540 | 33.333 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BCA52M0000ACGR | Skyworks晶振 | Si540 | 52 MHz | LVDS | 1.8V ~ 3.3V |
| 540BCD20M0000CCGR | Skyworks晶振 | Si540 | 20 MHz | LVDS | 1.8V ~ 3.3V |
| 540BCA100M000BCGR | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BCC25M0000CCGR | Skyworks晶振 | Si540 | 25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BCA26M0000BCGR | Skyworks晶振 | Si540 | 26 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BCC25M0000ACGR | Skyworks晶振 | Si540 | 25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BCB100M000CCGR | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BCA100M000ACGR | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BCA122M880ABGR | Skyworks晶振 | Si540 | 122.88 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BCA52M0000ABGR | Skyworks晶振 | Si540 | 52 MHz | LVDS | 2.5V |
| 540BCA122M880ACG | Skyworks晶振 | Si540 | 122.88 MHz | LVDS | 1.8V ~ 3.3V |
| 540BBA250M000ACG | Skyworks晶振 | Si540 | 250 MHz | LVDS | 1.8V ~ 3.3V |
| 540BAA270M000ACG | Skyworks晶振 | Si540 | 270 MHz | LVDS | 1.8V ~ 3.3V |
| 540BAA25M0000CCGR | Skyworks晶振 | Si540 | 25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BCA52M0000ACG | Skyworks晶振 | Si540 | 52 MHz | LVDS | 1.8V ~ 3.3V |
| 540BCD20M0000CCG | Skyworks晶振 | Si540 | 20 MHz | LVDS | 1.8V ~ 3.3V |
| 540BCC25M0000CCG | Skyworks晶振 | Si540 | 25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BCA70M6560BCG | Skyworks晶振 | Si540 | 70.656 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BCA100M000ACG | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BCB100M000CCG | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BCA74M2500CCG | Skyworks晶振 | Si540 | 74.25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
1、技術支持：全方位技術指導,專業的技術支持讓您感受到前所未有的后顧無憂.
2、客服咨詢:專業的銷售團隊,耐心為您解答任何疑問,讓您的消費得到保障.
3、質量保證,誠信為本,上我司以“以科技為動力,以質量求生存,”為理念.
4、提升業績,降低成本為您的產品量身訂制,免費取樣,為您做到低成本,高效率.
3、質量保證,誠信為本,上我司以“以科技為動力,以質量求生存,”為理念.
4、提升業績,降低成本為您的產品量身訂制,免費取樣,為您做到低成本,高效率.
康比電子聯系方式:
Q Q: 577541227
電 話：0755-27876201
手 機: 13728742863
Email: kangbidz@163.com
網 址: http://m.web3dchina.com/
地 址: 廣東省深圳市寶安區41區33棟6層
Q Q: 577541227
電 話：0755-27876201
手 機: 13728742863
Email: kangbidz@163.com
網 址: http://m.web3dchina.com/
地 址: 廣東省深圳市寶安區41區33棟6層
