首頁進口晶振 SKYWORKS晶振514JBA000126BAGR,Si514交換機差分晶振,思佳訊低電壓晶振

514JBA000126BAGR,Si514交換機差分晶振,思佳訊低電壓晶振

產品型號：60856075
頻率：200MHZ
尺寸：5.0*3.2mm
產品介紹：514JBA000126BAGR,Si514交換機差分晶振,思佳訊低電壓晶振，尺寸5032mm,頻率200MHZ，輸出邏輯LVDS，電壓1.8V，頻率穩定性25ppm，Skyworks差分振蕩器，思佳訊差分晶...

514JBA000126BAGR,Si514交換機差分晶振,思佳訊低電壓晶振，尺寸5032mm,頻率200MHZ，輸出邏輯LVDS，電壓1.8V，頻率穩定性25ppm，Skyworks差分振蕩器，思佳訊差分晶振，歐美進口晶振，LVDS輸出晶振，差分石英晶振，貼片差分晶振，可編程振蕩器，5032mm差分晶振，六腳有源晶振，差分貼片晶振，有源晶體振蕩器，LVDS差分晶體振蕩器，OSC差分晶振，有源差分晶振，交換機專用差分晶振，無人機專用差分晶振，工業自動化差分晶振，數據通信差分晶振，儀器儀表差分晶振，小型設備差分晶振，測試測量差分晶振，通信模塊差分晶振，無線路由器專用差分晶振，低耗能差分晶振，低抖動差分晶振，高頻差分晶振，高質量差分晶振，低電壓差分晶振，低相位差分晶振，低功耗差分晶振，具備低抖動低電壓的特點。SMD振蕩器產品比較適合用于交換機，無人機，工業自動化，數據通信，儀器儀表，小型設備，測試測量，通信模塊，無線路由器等領域。514JBA000126BAGR,Si514交換機差分晶振,思佳訊低電壓晶振.

514JBA000126BAGR,Si514交換機差分晶振,思佳訊低電壓晶振 參數表

Parameter	Symbol	Test Condition	Min	Typ	Max	Units
Supply Voltage	V DD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75	V
		1.8 V option	1.71	1.8	1.89	V
Supply Current	IDD	CMOS, 100 MHz, single-ended	—	21	26	mA
		LVDS (output enabled)	—	19	23	mA
		LVPECL (output enabled)	—	39	43	mA
		HCSL (output enabled)	—	41	44	mA
		Tristate (output disabled)	—	—	18	mA
Operating Temperature	TA		–40	—	85	oC

Parameter

Symbol

Test Condition

Min

Typ

Max

Units

SDA, SCL Input Voltage High

VIH

0.80 x V DD

—

SDA, SCL Input Voltage Low

VIL

—

0.20 x V DD

Parameter

Symbol

Test Condition

Min

Typ

Max

Units

Programmable
Frequency Range

CMOS, Dual CMOS

0.1

—

212.5

MHz

LVDS/LVPECL/HCSL

200

MHz

Frequency
Reprogramming
Resolution

M RES

—

0.026

—

ppb

Frequency Range for
Small Frequency Change
(Continuous Glitchless
Output)

From center frequency

–1000

—

+1000

ppm

Settling time for Small
Frequency Change

<±1000 ppm from
center frequency

—

100

µs

Settling time for Large
Frequency Change (Out-
put Squelched during Fre-
quency Transition)

>±1000 ppm from
center frequency

—

Total Stability*

Frequency Stability Grade C

–30

—

+30

ppm

Frequency Stability Grade B

–50

—

+50

ppm

Frequency Stability Grade A

–100

—

+100

ppm

Temperature Stability

Frequency Stability Grade C

–20

—

+20

ppm

Frequency Stability Grade B

–25

—

+25

ppm

Frequency Stability Grade A

–50

—

+50

ppm

Startup Time

TSU

Minimum V DD until output
frequency (FO) within specification

—

Disable Time

FO< 10 MHz

—

µs

FO> 10 MHz

—

µs

Enable Time

FO< 10 MHz

—

µs

FO> 10 MHz

—

µs

514JBA000126BAGR,Si514交換機差分晶振,思佳訊低電壓晶振 尺寸圖

514JBA000126BAGR,Si514交換機差分晶振,思佳訊低電壓晶振

產品特性

可編程到任何頻率從100kHz到250MHz
0.026 ppb頻率調諧決議
OE、電源故障抑制接通和頻率轉換
低抖動操作
2至4周交付周期
總體穩定性包括10年變老
綜合生產試驗
覆蓋范圍包括晶體ESR和DLD
用于電源的片上LDO噪聲濾波
3.3、2.5或1.8 V操作
差分（LVPECL、LVDS有源晶振、HCSL）或CMOS輸出選項
可選集成1:2 CMOS扇出緩存

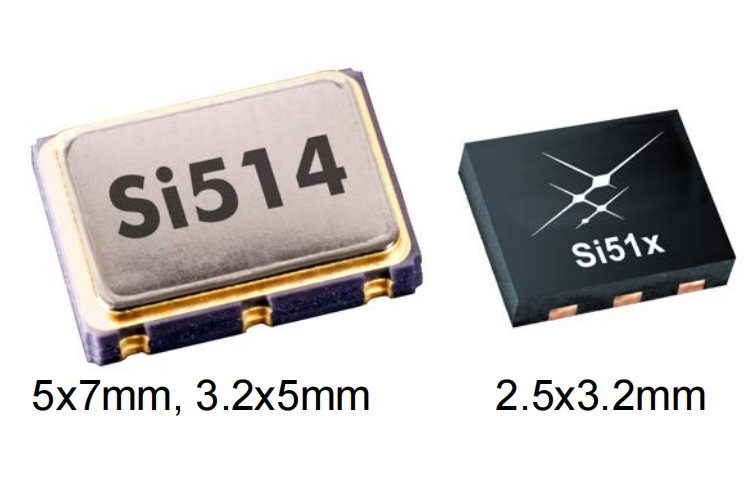

行業標準5x7、3.2x5和2.5x3.2 mm包裝
–40至85℃操作

Mfr Part #	Mfr	Description	Series	Frequency	Output
514BBB001011BAG	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si514	148.5 MHz	LVDS
514EBB000159BAG	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVPECL	Si514	148.5 MHz	LVPECL
514FBB000121BAG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si514	100 MHz	LVDS
514FBB000159BAG	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si514	148.5 MHz	LVDS
514JBB000112BAG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Si514	10 MHz	LVDS
514JBB000118BAG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	Si514	156.25 MHz	LVDS
514JBB000159BAG	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si514	148.5 MHz	LVDS
514JBB000482BAG	Skyworks有源晶振	XTAL OSC XO 148.3500MHZ LVDS SMD	Si514	148.35 MHz	LVDS
514JBB000586BAG	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVDS SMD	Si514	155.52 MHz	LVDS
514JBB001011BAG	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si514	148.5 MHz	LVDS
514BCB000106AAG	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVDS SMD	Si514	155.52 MHz	LVDS
514BCB001535AAG	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVDS SMD	Si514	155.52 MHz	LVDS
514BAA000950AAG	Skyworks有源晶振	XTAL OSC XO 88.0000MHZ LVDS SMD	Si514	88 MHz	LVDS
514EAA001009AAG	Skyworks有源晶振	XTAL OSC XO 8.0000MHZ LVPECL SMD	Si514	8 MHz	LVPECL
514BBA002376BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	70 MHz	LVDS
514JBA000112CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	10 MHz	LVDS
514FBA000115BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	125 MHz	LVDS
514FBA000112BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	10 MHz	LVDS
514ABA000144AAG	Skyworks有源晶振	XTAL OSC XO 80.0000MHZ LVPECL	Si514	80 MHz	LVPECL
514ABA001695AAG	Skyworks有源晶振	XTAL OSC XO 125.0000KHZ LVPECL	Si514	125 kHz	LVPECL
514ABA001741AAG	Skyworks有源晶振	XTAL OSC XO 70.6560MHZ LVPECL	Si514	70.656 MHz	LVPECL
514BBA000159AAG	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si514	148.5 MHz	LVDS
514FBA000112AAG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Si514	10 MHz	LVDS
514FBA000950AAG	Skyworks有源晶振	XTAL OSC XO 88.0000MHZ LVDS SMD	Si514	88 MHz	LVDS
514JBA000121AAG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si514	100 MHz	LVDS
514JBA000159AAG	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si514	148.5 MHz	LVDS
514BBA000107BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Si514	10 MHz	LVDS
514BBA000115BAGR	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	Si514	125 MHz	LVDS
514BBA000121BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si514	100 MHz	LVDS
514BBA000159BAGR	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si514	148.5 MHz	LVDS
514BBA000215BAGR	Skyworks有源晶振	XTAL OSC XO 27.0000MHZ LVDS SMD	Si514	27 MHz	LVDS
514BBA000282BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Si514	10 MHz	LVDS
514BBA000383BAGR	Skyworks有源晶振	XTAL OSC XO 150.0000MHZ LVDS SMD	Si514	150 MHz	LVDS
514BBA000399BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Si514	10 MHz	LVDS
514BBA000400BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Si514	10 MHz	LVDS
514BBA000495BAGR	Skyworks有源晶振	XTAL OSC XO 74.2500MHZ LVDS SMD	Si514	74.25 MHz	LVDS
514BBA000770BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si514	100 MHz	LVDS
514BBA000949BAGR	Skyworks有源晶振	XTAL OSC XO 243.0000MHZ LVDS SMD	Si514	243 MHz	LVDS
514BBA001156BAGR	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	Si514	156.25 MHz	LVDS
514BBA001207BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si514	100 MHz	LVDS
514BBA001212BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Si514	10 MHz	LVDS
514BBA001683BAGR	Skyworks有源晶振	XTAL OSC XO 12.0000MHZ LVDS SMD	Si514	12 MHz	LVDS
514BBA001823BAGR	Skyworks有源晶振	XTAL OSC XO 40.0000MHZ LVDS SMD	Si514	40 MHz	LVDS
514BBA001861BAGR	Skyworks有源晶振	XTAL OSC XO 53.6256MHZ LVDS SMD	Si514	53.6256 MHz	LVDS
514EBA000157BAGR	Skyworks有源晶振	XTAL OSC XO 50.0000MHZ LVPECL	Si514	50 MHz	LVPECL
514FBA000110BAGR	Skyworks有源晶振	XTAL OSC XO 74.2500MHZ LVDS SMD	Si514	74.25 MHz	LVDS
514FBA000159BAGR	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si514	148.5 MHz	LVDS
514FBA000215BAGR	Skyworks有源晶振	XTAL OSC XO 27.0000MHZ LVDS SMD	Si514	27 MHz	LVDS
514FBA000383BAGR	Skyworks有源晶振	XTAL OSC XO 150.0000MHZ LVDS SMD	Si514	150 MHz	LVDS
514FBA000776BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000KHZ LVDS SMD	Si514	100 kHz	LVDS
514FBA001346BAGR	Skyworks有源晶振	XTAL OSC XO 200.0800MHZ LVDS SMD	Si514	200.08 MHz	LVDS
514FBA001602BAGR	Skyworks有源晶振	XTAL OSC XO 66.6666666MHZ LVDS	Si514	66.6666666 MHz	LVDS
514JBA000118BAGR	SKYWORKS晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	Si514	156.25 MHz	LVDS
514JBA000121BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si514	100 MHz	LVDS
514JBA000126BAGR	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	Si514	200 MHz	LVDS
514JBA000586BAGR	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVDS SMD	Si514	155.52 MHz	LVDS
514JBA000773BAGR	Skyworks有源晶振	XTAL OSC XO 98.3040MHZ LVDS SMD	Si514	98.304 MHz	LVDS
514JBA001844BAGR	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	Si514	200 MHz	LVDS
514FBA002117BAGR	Skyworks有源晶振	XO DIFF I2C PROGR XO 0.1-250MHZ	Si514	74.175 MHz	LVDS
514BBA002367BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	77.6 MHz	LVDS
514JBA001468BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	118 MHz	LVDS
514BBA001794BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	40 MHz	LVDS
514BBA000290BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	250 MHz	LVDS
514JBA000159CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	148.5 MHz	LVDS
514BBA000121CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	100 MHz	LVDS
514BBA000112BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	10 MHz	LVDS
514JBA001011CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	148.5 MHz	LVDS
514EBA000110CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; I2C P	Si514	74.25 MHz	LVPECL
514AAC000107AAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVPECL	Si514	10 MHz	LVPECL
514BAC000112AAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Si514	10 MHz	LVDS
514FAC000864AAGR	Skyworks有源晶振	XTAL OSC XO 13.3000MHZ LVDS SMD	Si514	13.3 MHz	LVDS
514ACA000107BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVPECL	Si514	10 MHz	LVPECL
514ACA000112BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVPECL	Si514	10 MHz	LVPECL
514ACA000121BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVPECL	Si514	100 MHz	LVPECL
514ACA000199BAGR	Skyworks有源晶振	XTAL OSC XO 40.0000MHZ LVPECL	Si514	40 MHz	LVPECL
514ACA000735BAGR	Skyworks有源晶振	XTAL OSC XO 133.3300MHZ LVPECL	Si514	133.33 MHz	LVPECL
514ACA000776BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000KHZ LVPECL	Si514	100 kHz	LVPECL
514ACA000980BAGR	Skyworks有源晶振	XTAL OSC XO 250.0000KHZ LVPECL	Si514	250 kHz	LVPECL
514ACA001304BAGR	Skyworks有源晶振	XTAL OSC XO 133.3330MHZ LVPECL	Si514	133.333 MHz	LVPECL
514ACA001545BAGR	Skyworks有源晶振	XTAL OSC XO 195.3125MHZ LVPECL	Si514	195.3125 MHz	LVPECL
514BCA000110BAGR	Skyworks有源晶振	XTAL OSC XO 74.2500MHZ LVDS SMD	Si514	74.25 MHz	LVDS
514BCA000118BAGR	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	Si514	156.25 MHz	LVDS
514BCA000121BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si514	100 MHz	LVDS
514BCA000126BAGR	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	Si514	200 MHz	LVDS
514BCA000159BAGR	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si514	148.5 MHz	LVDS
514BCA000169BAGR	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	Si514	125 MHz	LVDS
514BCA000178BAGR	Skyworks有源晶振	XTAL OSC XO 16.0000MHZ LVDS SMD	Si514	16 MHz	LVDS
514BCA000199BAGR	Skyworks有源晶振	XTAL OSC XO 40.0000MHZ LVDS SMD	Si514	40 MHz	LVDS
514BCA000449BAGR	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	Si514	125 MHz	LVDS
514BCA000642BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si514	100 MHz	LVDS
514BCA000643BAGR	Skyworks有源晶振	XTAL OSC XO 212.5000MHZ LVDS SMD	Si514	212.5 MHz	LVDS
514BCA000798BAGR	Skyworks有源晶振	XTAL OSC XO 1.0000MHZ LVDS SMD	Si514	1 MHz	LVDS
514BCA001041BAGR	Skyworks有源晶振	XTAL OSC XO 156.0000MHZ LVDS SMD	Si514	156 MHz	LVDS
514BCA001171BAGR	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	Si514	125 MHz	LVDS
