- 產品型號：95171177
- 頻率：250MHZ
- 尺寸：7.0*5.0mm
- 產品介紹：511BBA250M000AAGR,Skyworks智能穿戴晶振,Si511差分振蕩器，尺寸7050mm,頻率250MHZ，輸出邏輯LVDS，電壓3.3V，頻率穩定性25ppm，思佳訊有源晶振，歐美有源晶振，S...
-

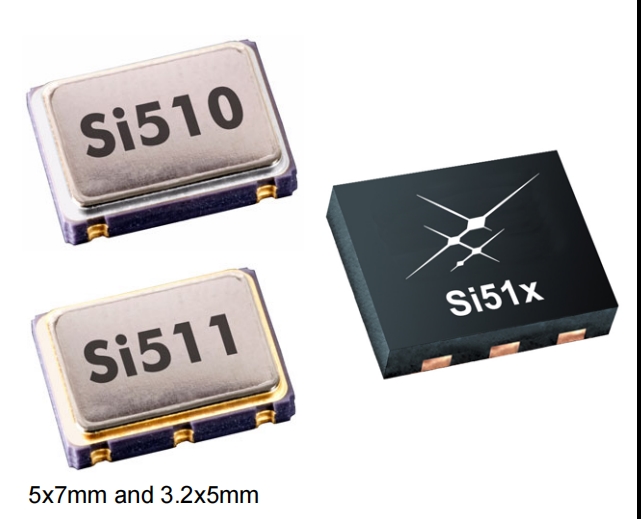

511BBA250M000AAGR,Skyworks智能穿戴晶振,Si511差分振蕩器
.jpg)
.jpg)
511BBA250M000AAGR,Skyworks智能穿戴晶振,Si511差分振蕩器，尺寸7050mm,頻率250MHZ，輸出邏輯LVDS，電壓3.3V，頻率穩定性25ppm，思佳訊有源晶振，歐美有源晶振，Skyworks差分振蕩器，六腳差分晶振，OSC差分晶振，250MHZ差分晶振，7050mm差分振蕩器，差分晶體振蕩器，LVDS輸出晶振，差分石英晶體振蕩器，LVDS差分晶振，有源差分晶振，貼片差分晶振，智能穿戴差分晶振，物聯網差分晶振，游戲設備差分晶振，儀器儀表差分晶振，室內基站專用差分晶振，測試測量差分晶振，藍牙模塊差分晶振，高頻差分晶振，高性能差分晶振，高質量差分晶振，低耗能差分晶振，低電壓差分晶振，低抖動差分晶振，低功耗差分晶振，低相位差分晶振，具有高性能低電壓的特點.
OSC晶振產品非常適合用于智能穿戴，物聯網，游戲設備，儀器儀表，室內基站，測試測量，藍牙模塊等領域。511BBA250M000AAGR,Skyworks智能穿戴晶振,Si511差分振蕩器.
.jpg)
511BBA250M000AAGR,Skyworks智能穿戴晶振,Si511差分振蕩器 參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||||
| Supply Voltage | V DD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | ||||||||||||||||||||
| 1.8 V option | 1.71 | 1.8 | 1.89 | V | ||||||||||||||||||||
| Supply Current | IDD |
CMOS, 100 MHz, single-ended |
— | 21 | 26 | mA | ||||||||||||||||||
|
LVDS (output enabled) |
— | 19 | 23 | mA | ||||||||||||||||||||
|
LVPECL (output enabled) |
— | 39 | 43 | mA | ||||||||||||||||||||
|
HCSL (output enabled) |
— | 41 | 44 | mA | ||||||||||||||||||||
|
Tristate (output disabled) |
— | — | 18 | mA | ||||||||||||||||||||
| OE "1" Setting | VIH | See Note | 0.80 x V DD | — | — | V | ||||||||||||||||||
| OE "0" Setting | VIL | See Note | — | — | 0.20 x V DD | V | ||||||||||||||||||
|
OE Internal Pull-Up/Pull- Down Resistor* |
RI | — | 45 | — | kΩ | |||||||||||||||||||
| Operating Temperature | TA | –40 | — | 85 | oC | |||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||||
| Nominal Frequency | FO | CMOS, Dual CMOS | 0.1 | — | 212.5 | MHz | ||||||||||||||||||
| FO | LVDS/LVPECL/HCSL | 250 | MHz | |||||||||||||||||||||
| Total Stability* | Frequency Stability Grade C | –30 | — | +30 | ppm | |||||||||||||||||||
| Frequency Stability Grade B | –50 | — | +50 | ppm | ||||||||||||||||||||
| Frequency Stability Grade A | –100 | — | +100 | ppm | ||||||||||||||||||||
| Temperature Stability | Frequency Stability Grade C | –20 | — | +20 | ppm | |||||||||||||||||||
| Frequency Stability Grade B | –25 | — | +25 | ppm | ||||||||||||||||||||
| Frequency Stability Grade A | –50 | — | +50 | ppm | ||||||||||||||||||||
| Startup Time | TSU |
Minimum V DD until output frequency (FO) within specification |
— | — | 10 | ms | ||||||||||||||||||
| Disable Time | TD | FO> 10 MHz | — | — | 5 | µs | ||||||||||||||||||
| FO< 10 MHz | — | — | 40 | µs | ||||||||||||||||||||
| Enable Time | TE | FO> 10 MHz | — | — | 20 | µs | ||||||||||||||||||
| FO< 10 MHz | — | — | 60 | µs | ||||||||||||||||||||
.jpg)
511BBA250M000AAGR,Skyworks智能穿戴晶振,Si511差分振蕩器 尺寸圖
511BBA250M000AAGR,Skyworks智能穿戴晶振,Si511差分振蕩器
SMD振蕩器產品特性
.jpg)
支持來自的任何頻率100kHz至250MHz
低抖動操作
2-4周交付周期
總體穩定性包括10年變老
綜合生產試驗覆蓋范圍包括晶體ESR和DLD
用于電源的片上LDO調節器電源噪聲濾波
3.3、2.5或1.8 V操作
差分（LVPECL、LVDS、HCSL）或CMOS輸出選項
可選集成1:2 CMOS扇出緩存
OE和接通電源
行業標準5 x 7、3.2 x 5，和2.5 x 3.2毫米封裝
無鉛，符合RoHS
–40至85℃操作
低抖動操作
2-4周交付周期
總體穩定性包括10年變老
綜合生產試驗覆蓋范圍包括晶體ESR和DLD
用于電源的片上LDO調節器電源噪聲濾波
3.3、2.5或1.8 V操作
差分（LVPECL、LVDS、HCSL）或CMOS輸出選項
可選集成1:2 CMOS扇出緩存
OE和接通電源
行業標準5 x 7、3.2 x 5，和2.5 x 3.2毫米封裝
無鉛，符合RoHS
–40至85℃操作
| Mfr Part # | 進口晶振 | Description | Series | Frequency | Output | Voltage - Supply |
| 511BCA233M333CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 233.333 MHz | LVDS | 3.3V |
| 511BCB192M000BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 192 MHz | LVDS | 3.3V |
| 511ECA187M500CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 187.5 MHz | LVPECL | 2.5V |
| 511JCA233M333CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 233.333 MHz | LVDS | 1.8V |
| 511ACA207M500CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 207.5 MHz | LVPECL | 3.3V |
| 511BCA200M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 200 MHz | LVDS | 3.3V |
| 511BCA000127BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | - | LVDS | 3.3V |
| 511BCA233M250BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 233.25 MHz | LVDS | 3.3V |
| 511JCA245M760BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 245.76 MHz | LVDS | 1.8V |
| 511FCB200M000BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 200 MHz | LVDS | 2.5V |
| 511BCA233M209CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 233.209 MHz | LVDS | 3.3V |
| 511AAA148M500BAG | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVPECL | Si511 | 148.5 MHz | LVPECL | 3.3V |
| 511AAA156M250BAG | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVPECL | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511ACA100M000BAG | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVPECL | Si511 | 100 MHz | LVPECL | 3.3V |
| 511BAA62M5000AAG | Skyworks有源晶振 | XTAL OSC XO 62.5000MHZ LVDS SMD | Si511 | 62.5 MHz | LVDS | 3.3V |
| 511BAB30M7200AAG | Skyworks有源晶振 | XTAL OSC XO 30.7200MHZ LVDS SMD | Si511 | 30.72 MHz | LVDS | 3.3V |
| 511BABM587000AAG | Skyworks有源晶振 | XTAL OSC XO 587.0000KHZ LVDS SMD | Si511 | 587 kHz | LVDS | 3.3V |
| 511EAA125M000AAG | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVPECL | Si511 | 125 MHz | LVPECL | 2.5V |
| 511EAA31M2500AAG | Skyworks有源晶振 | XTAL OSC XO 31.2500MHZ LVPECL | Si511 | 31.25 MHz | LVPECL | 2.5V |
| 511FAA100M000AAG | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si511 | 100 MHz | LVDS | 2.5V |
| 511FAA30M2500AAG | Skyworks有源晶振 | XTAL OSC XO 30.2500MHZ LVDS SMD | Si511 | 30.25 MHz | LVDS | 2.5V |
| 511BAA125M000AAG | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | Si511 | 125 MHz | LVDS | 3.3V |
| 511AAA10M0000AAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 10 MHz | LVPECL | 3.3V |
| 511AAAM450000AAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 450 kHz | LVPECL | 3.3V |
| 511JAA100M000AAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 100 MHz | LVDS | 1.8V |
| 511JAA40M0000AAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 40 MHz | LVDS | 1.8V |
| 511BBA80M0000BAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 80 MHz | LVDS | 3.3V |
| 511ABA25M0000CAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 25 MHz | LVPECL | 3.3V |
| 511BBA70M6560BAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 70.656 MHz | LVDS | 3.3V |
| 511BBA80M0000CAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 80 MHz | LVDS | 3.3V |
| 511ABA212M500BAG | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ LVPECL | Si511 | 212.5 MHz | LVPECL | 3.3V |
| 511BBA212M500BAG | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ LVDS SMD | Si511 | 212.5 MHz | LVDS | 3.3V |
| 511ABA204M800AAGR | Skyworks有源晶振 | XTAL OSC XO 204.8000MHZ LVPECL | Si511 | 204.8 MHz | LVPECL | 3.3V |
| 511ABA250M000AAGR | Skyworks有源晶振 | XTAL OSC XO 250.0000MHZ LVPECL | Si511 | 250 MHz | LVPECL | 3.3V |
| 511BBA203M125AAGR | Skyworks有源晶振 | XTAL OSC XO 203.1250MHZ LVDS SMD | Si511 | 203.125 MHz | LVDS | 3.3V |
| 511BBA204M800AAGR | Skyworks有源晶振 | XTAL OSC XO 204.8000MHZ LVDS SMD | Si511 | 204.8 MHz | LVDS | 3.3V |
| 511BBA250M000AAGR | Skyworks有源晶振 | XTAL OSC XO 250.0000MHZ LVDS SMD | Si511 | 250 MHz | LVDS | 3.3V |
| 511BBB200M000AAGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | Si511 | 200 MHz | LVDS | 3.3V |
| 511BBB250M000AAGR | Skyworks有源晶振 | XTAL OSC XO 250.0000MHZ LVDS SMD | Si511 | 250 MHz | LVDS | 3.3V |
| 511EBA200M000AAGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVPECL | Si511 | 200 MHz | LVPECL | 2.5V |
| 511EBA250M000AAGR | Skyworks有源晶振 | XTAL OSC XO 250.0000MHZ LVPECL | Si511 | 250 MHz | LVPECL | 2.5V |
| 511FBA187M500AAGR | Skyworks有源晶振 | XTAL OSC XO 187.5000MHZ LVDS SMD | Si511 | 187.5 MHz | LVDS | 2.5V |
| 511FBA250M000AAGR | Skyworks有源晶振 | XTAL OSC XO 250.0000MHZ LVDS SMD | Si511 | 250 MHz | LVDS | 2.5V |
| 511JBA200M000AAGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | Si511 | 200 MHz | LVDS | 1.8V |
| 511BBA000351AAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 195.3125 MHz | LVDS | 3.3V |
| 511BBA208M125AAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 208.125 MHz | LVDS | 3.3V |
| 511AAA100M000AAG | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVPECL | Si511 | 100 MHz | LVPECL | 3.3V |
| 511AAA125M000AAG | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVPECL | Si511 | 125 MHz | LVPECL | 3.3V |
| 511AAA25M0000AAG | Skyworks有源晶振 | XTAL OSC XO 25.0000MHZ LVPECL | Si511 | 25 MHz | LVPECL | 3.3V |
| 511AAB25M0000AAG | Skyworks有源晶振 | XTAL OSC XO 25.0000MHZ LVPECL | Si511 | 25 MHz | LVPECL | 3.3V |
| 511BAA000308AAG | Skyworks有源晶振 | XTAL OSC XO 74.212912MHZ LVDS | Si511 | 74.212912 MHz | LVDS | 3.3V |
| 511BAA100M000AAG | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si511 | 100 MHz | LVDS | 3.3V |
| 511BAA120M237AAG | Skyworks有源晶振 | XTAL OSC XO 120.2370MHZ LVDS SMD | Si511 | 120.237 MHz | LVDS | 3.3V |
| 511BAA31M0025AAG | Skyworks有源晶振 | XTAL OSC XO 31.0025MHZ LVDS SMD | Si511 | 31.0025 MHz | LVDS | 3.3V |
| 511BAA31M2500AAG | Skyworks有源晶振 | XTAL OSC XO 31.2500MHZ LVDS SMD | Si511 | 31.25 MHz | LVDS | 3.3V |
| 511BAA40M0786AAG | Skyworks有源晶振 | XTAL OSC XO 40.0786MHZ LVDS SMD | Si511 | 40.0786 MHz | LVDS | 3.3V |
| 511BAA40M0790AAG | SKYWORKS晶振 | XTAL OSC XO 40.0790MHZ LVDS SMD | Si511 | 40.079 MHz | LVDS | 3.3V |
| 511FBA81M0000BAG | Skyworks有源晶振 | XTAL OSC XO 81.0000MHZ LVDS SMD | Si511 | 81 MHz | LVDS | 2.5V |
| 511JBA106M250BAG | Skyworks有源晶振 | XTAL OSC XO 106.2500MHZ LVDS SMD | Si511 | 106.25 MHz | LVDS | 1.8V |
| 511JBA20M0000BAG | Skyworks有源晶振 | XTAL OSC XO 20.0000MHZ LVDS SMD | Si511 | 20 MHz | LVDS | 1.8V |
| 511JBA75M0000BAG | Skyworks有源晶振 | XTAL OSC XO 75.0000MHZ LVDS SMD | Si511 | 75 MHz | LVDS | 1.8V |
